Name: Waterproof IP67 MC4 Diode Connector For Solar System
Brand: FEEO
Price: 1 USD

Brand Name : FEEO

Model Number : FMC4D

Certification : CE

Place of Origin : China

MOQ : 1Pair

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs per week

Delivery Time : 7days

Packaging Details : 1000pcs per carton

Type : Solar connector

Insulation material : PPO

Contact material : Copper,Tin plated

Adapting Current : 10A

Rated voltage : 1000V

Test Voltage : 8000V(50Hz, 1min)

Degree of Protection : IP67

Flame Class : UL94-VO

Contact Now

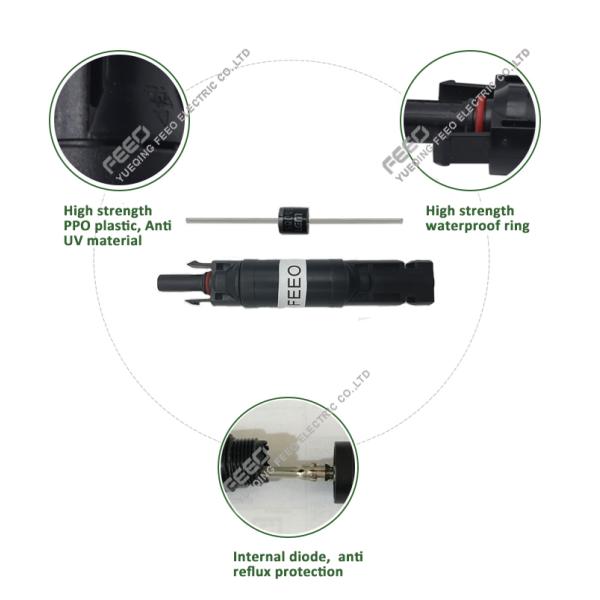

FMC4D Solar Blocking Diode Connector Solar Mc4 Connector Waterproof

FMC4D

Solar Diode connector

►Main Speciality

The fuse/diode series connectors
Low power loss.
Auto-lock equipment of male and female points enable connection more easy and reliable.
With the capacity of anti-aging and resistance of ultraviolet radiation on the outer cover.
Popular figure suit most of field installation.
Simple on-site processing.
With convenient installation,strong commonality

►Specifications

Technical Data
Adapting current	10A
Rated voltage	1000V DC
Test voltage	8000V(50HZ,1min)
Overvoltage category / Pollution Degree	CATIII/ 2
Contact material	Copper,Tin-plated
Insulation material	PPO
Degree of protection	IP67
Flame Class	UL94-VO
Safety Class	II
Pin Dimensions	4mm
Temperature Range	-40~5

Waterproof IP67 MC4 Diode Connector For Solar System
